The OPTI-LYNX™ Direct-Connect Trap / Pre-Column Filter Holder (11-02226-AA) is an original OPTI-LYNX holder configuration for trapping and pre-column filtration.
For trapping, 11-02226-AA is the documented original OPTI-LYNX Direct-Connect Trap Holder for original OPTI-LYNX Trap Cartridges. For filtration, it is the documented original OPTI-LYNX Pre-Column Filter Holder.
Includes Universal Port Adapter, Holder Cap, Holder Tube, and Fitting. OPTI-LYNX Trap Cartridges and Filter Inserts are ordered separately.
The included Universal Port Adapter is documented for connection to 10-32 female ports. The Universal Port Adapter provides an auto-adjusting zero-dead-volume connection to compatible 10-32 female ports, accommodating differences in mating-port depth.
The original OPTI-LYNX quarter-turn quick-connect connection is rated to 6,000 psi. Operate within the pressure rating of the installed insert.
The original OPTI-LYNX quick-connect system provides a low-volume/low-dispersion interface for volume-critical regions. Compatible inserts can be changed by hand with a quarter-turn, without tools, while the holder hardware remains plumbed.
This holder is part of the original OPTI-LYNX family, which remains orderable and is planned for phase-out.
11-02226-AAFor trapping, 11-02226-AA is the documented original OPTI-LYNX Direct-Connect Trap Holder for original OPTI-LYNX Trap Cartridges.
For filtration, 11-02226-AA is the documented original OPTI-LYNX Pre-Column Filter Holder.
OPTI-LYNX Filter Insert application guidance:

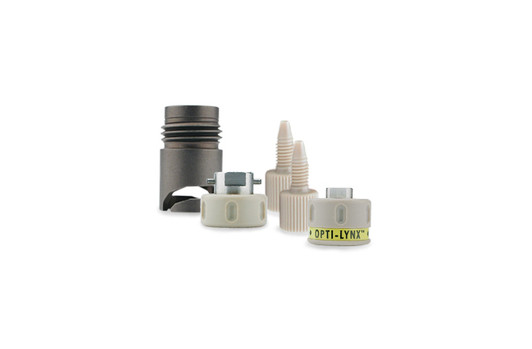

11-03200-AA)Alternative holder configuration: OPTI-LYNX In-Line Trap / Filter Holder (11-02225-AA).
For compatibility questions not covered by the available documentation, contact Optimize Technologies.
| Specification | Information |
|---|---|
| Product | OPTI-LYNX™ Direct-Connect Trap / Pre-Column Filter Holder |
| Part number / SKU | 11-02226-AA |
| Product family | Original OPTI-LYNX |
| Trap role | Original OPTI-LYNX Direct-Connect Trap Holder |
| Filtration role | Original OPTI-LYNX Pre-Column Filter Holder |
| Included components | Universal Port Adapter, Holder Cap, Holder Tube, and Fitting |
| Trap / filter purchasing | OPTI-LYNX Trap Cartridges and Filter Inserts are ordered separately |
| Universal Port Adapter interface | Documented for connection to 10-32 female ports |
| ZDV connection | Auto-adjusting zero-dead-volume connection to compatible 10-32 female ports, accommodating differences in mating-port depth |
| Quick-connect operation | Hand-tight quarter-turn; no tools required |
| Pressure | The original OPTI-LYNX quarter-turn quick-connect connection is rated to 6,000 psi. Operate within the pressure rating of the installed insert. |
| System interface | Low-volume/low-dispersion interface for volume-critical regions |
| Holder plumbing | Holder hardware remains plumbed while compatible inserts are changed |
| Trap relationship | Original OPTI-LYNX Trap Cartridges are documented for use with this holder |
| Pre-Column Filter Insert scope | Low Volume and Medium Capacity OPTI-LYNX Filter Inserts are identified for Pre-Column use |
| In-Line Filter Insert distinction | High Capacity and Semi-Prep OPTI-LYNX Filter Inserts are identified for In-Line use |
| Prep Filter Insert boundary | Prep Filter Inserts require separate OPTI-LYNX In-Line Prep Filter Holder 11-03200-AA |
| Alternative holder configuration | OPTI-LYNX In-Line Trap / Filter Holder 11-02225-AA |
| Lifecycle | Part of the original OPTI-LYNX family, which remains orderable and is planned for phase-out |
