OPTI-LYNX™ Micro Holders

OPTI-LYNX™ Micro Holders provide the quick-connect holder configurations used with OPTI-LYNX Micro Trap Cartridges. Two holder options are available: Direct Connect and In-Line (BC).

The OPTI-LYNX Micro hand-tight quick-connect system is rated to 6,000 psi (400 bar). The system uses quarter-turn operation with no tools required and is designed for low-backpressure operation.

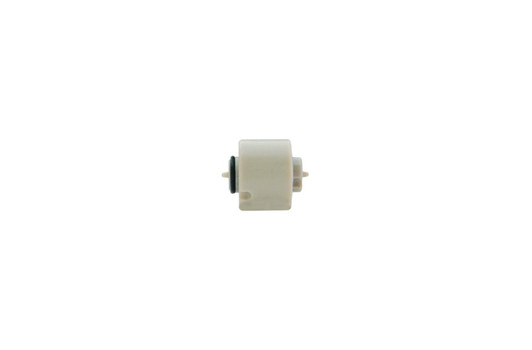

OPTI-LYNX Micro trap cartridges are biocompatible and bi-directional. The cartridges share the same external cartridge dimensions, allowing cartridges with different packed-bed dimensions and porosities to be used with the same OPTI-LYNX Micro holder hardware.

Standard OPTI-LYNX Micro cartridge bed volumes are 4 µL, 10 µL, 20 µL, and 40 µL. OPTI-LYNX Micro product information describes standard and custom packings. See OPTI-LYNX Micro Trap Cartridges for detailed current cartridge configuration and purchasing options.

OPTI-LYNX Micro supports on-line and off-line sample clean-up and pre-concentration. Examples include separating a peptide digest from its matrix for further analysis and preparing a dilute small-molecule sample for LC injection without sample loss. OPTI-LYNX Micro trap cartridges may be loaded and regenerated repeatedly.

Holder Selection

Direct Connect Holder — 11-04824-AA: Uses a 10-32 threaded direct-connect interface and includes a back-end OPTI-LOK™ fitting.

In-Line Holder (BC) — 11-03924-AA: Offers full biocompatibility and includes OPTI-LOK™ fittings and tubing.

• Hand-tight quarter-turn OPTI-LYNX Micro quick-connect system
• OPTI-LYNX Micro system rated to 6,000 psi (400 bar)
• No tools required
• Direct Connect and In-Line (BC) holder configurations
• Low-backpressure design
• Direct Connect uses a 10-32 threaded direct-connect interface
• In-Line holder offers full biocompatibility
• OPTI-LYNX Micro trap cartridges are biocompatible and bi-directional
• Same external cartridge dimensions allow cartridges with different packed-bed dimensions and porosities to be used with the same OPTI-LYNX Micro holder hardware
• Direct Connect 11-04824-AA includes a back-end OPTI-LOK™ fitting
• In-Line 11-03924-AA includes OPTI-LOK™ fittings and tubing
• Standard OPTI-LYNX Micro cartridge bed volumes are 4 µL, 10 µL, 20 µL, and 40 µL

OPTI-LYNX Micro Holders are for use with OPTI-LYNX Micro Trap Cartridges. For detailed current cartridge configuration and purchasing options, see OPTI-LYNX Micro Trap Cartridges.

OPTI-LYNX Micro is a separate product family from original OPTI-LYNX.

For physical-fit information, use the Trap Compatibility & Holder Reference. For chemistry information, use the Trap Chemistry Reference.

For other holder and cartridge pairing questions, contact Optimize Technologies.
