Meet the EXP®2 Ti-LOK™ Fitting with Integral Ferrule

Oregon City, OR – July 23, 2018 – Optimize Technologies, a leading provider of premium UHPLC, HPLC and LC/MS parts and consumables, is proud to introduce the latest innovation in hand-tight UHPLC technology: the EXP2 Ti-LOK Fitting with Integral Ferrule.

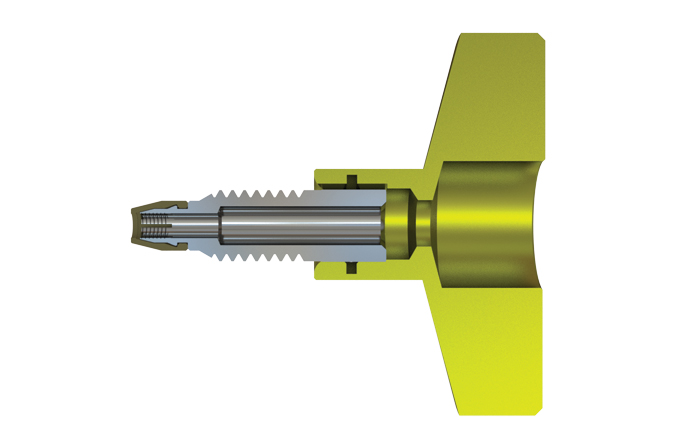

Evolving from Optimize Technologies’ original Titanium Hybrid Ferrule technology, the EXP2 Ti-LOK Fittings feature built-in PEEK ferrules and threaded nuts precision machined from titanium. The new fitting combines the superior corrosion resistance and robustness of titanium with the sealing capability of PEEK. Utilizing a unique geometric design, the fittings firmly press tubing against the tube stop of any instrument port, creating a zero dead volume (ZDV) connection. The ferrule does not permanently swage to the tubing, allowing for many repeat connections and the ability to adjust the tubing to different port depths. Compatible with PEEK, PEEKsil®, Hastelloy C and stainless steel tubing.

Included with the fittings is an EXP2 Driver - a small, easy to use knurled torque driver that snaps onto the nuts for hand-tightening and loosening. The EXP2 Driver is slotted and can be removed from the nut and tubing after use.


  • Hand-Tight to 18,000+ psi (1,250+ bar)
  • Titanium nut with integral PEEK ferrule
  • One-piece fitting (no loose ferrules)
  • Robust design offering superior corrosion resistance
  • Auto-adjusting zero-dead-volume connection
  • Intended for many repeat uses
  • Releases tubing for easy repositioning into different ports
  • No more cut-off and replacement of swaged ferrules
  • Simple and versatile - can be used in all LC applications
  • Compatible with PEEK, PEEKsil, Hastelloy C and stainless steel tubing
  • Made in the USA

Click to visit the EXP2 Ti-LOK Fitting page for more information...

Welcome To Optimize Tech Online: General Information

How can I order Optimize products?Optimize products can be ordered through any Authorized Dealer in the United States and worldwide, by Phone: 800-669-9015, 503-557-9994 or Fax: 503-557-9995, and Online. If you do not have an Optimize dealer in your region, please contact us to order or for a dealer recommendation.How late can I place an [...]

Read More

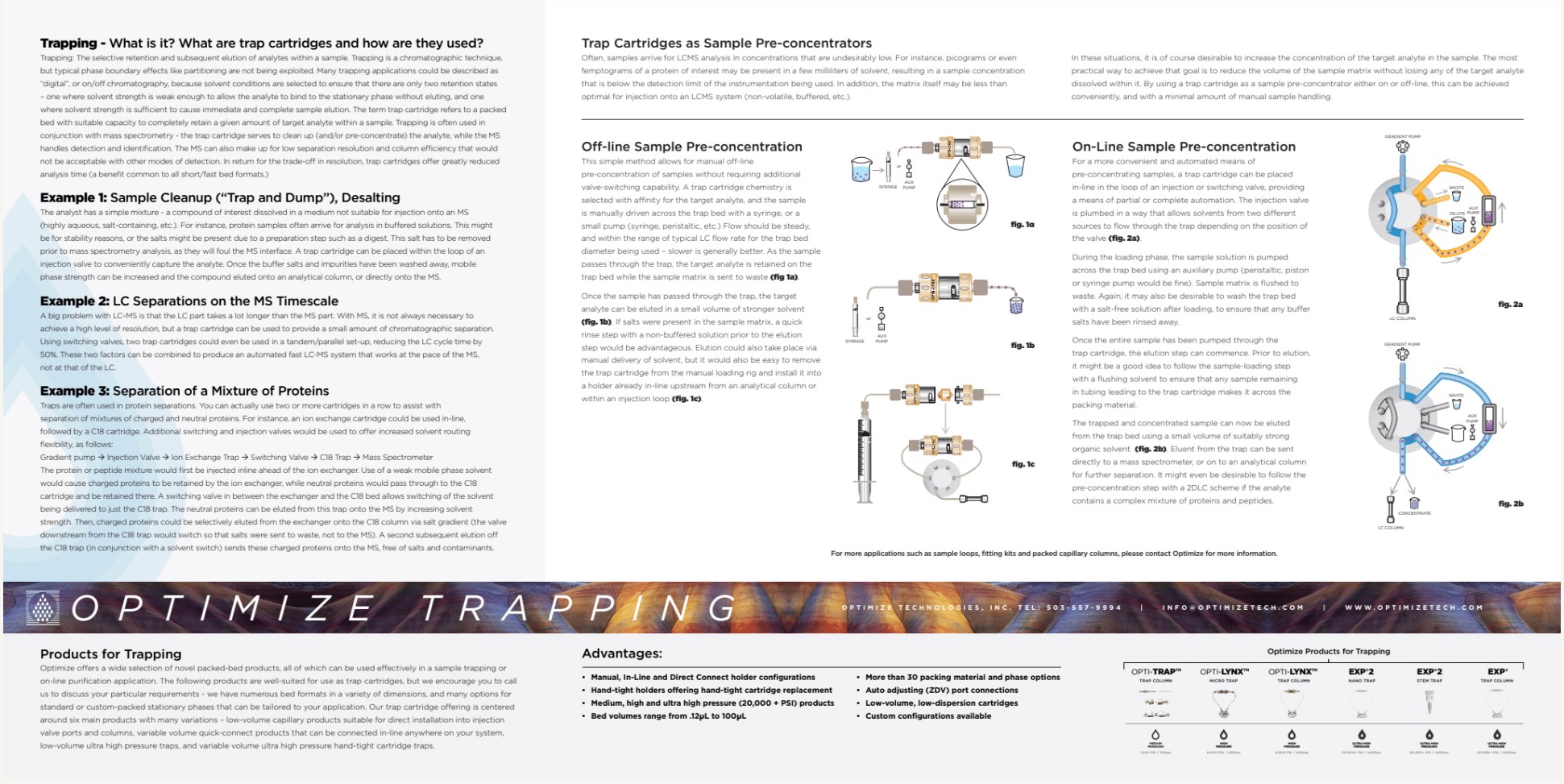

HPLC/UHPLC Trap Columns: Trapping - What is it? What are trap cartridges and how are they used?

Trapping: The selective retention and subsequent elution of analytes within a sample. Trapping is a chromatographic technique, but typical phase boundary effects like partitioning are not being exploited. Many trapping applications could be described as "digital", or on/off chromatography, because solvent conditions are selected to ensure that there are only two retention states - one [...]

Read More
