The entire EXP®2 Stem Trap and reusable holder are only slightly larger than a standard HPLC fitting. Its slim architecture allows it to easily fit into crowded instrument compartments or to connect directly to tightly-spaced injection ports. When tightened by hand, the EXP®2 Stem Trap seals to 8,700+ psi. All configurations incorporate wrench-flats to enable flawless sealing to 20,000+ psi (1,400+ bar).
The EXP System enables chemists to quickly remove detergents or salts which can affect the ionization process in MS work. This trapping technique can concentrate the sample directly on-line, allowing for increased recovery of precious sample material compared to off-line techniques.
On-line trapping readily lends itself to automation for high-throughput analysis in UHPLC/MS applications. Specialized features, patented technology, precision engineering and state-of-the-art manufacturing make the new EXP®2 Stem Trap an unbeatable choice for ultra high-pressure nano-flow trapping applications.
The new EXP®2 design incorporates integral ferrule into the front-end of the holder. No separate ferrule to lose.
The unique packed floating stem installs directly into any 10-32 port and automatically adjusts to provide a perfect ZDV connection.
| Pressure Rating | up to 20,000+psi - UHPLC |
|---|---|
| Bed Volume | .17uL - 2.6uL |
| Hand-tight sealing | 8,700+ psi |
| Wrench-tight sealing | 20,000+ psi (1,400+ bar) |
| Product | Stem Trap Kit; Replacement Stems 3/pk |
|---|---|

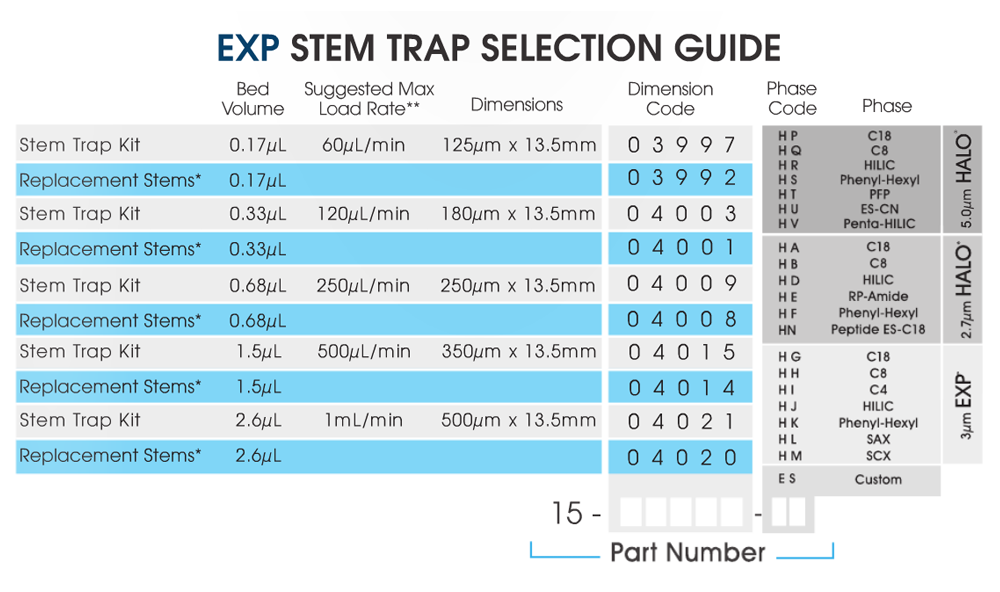

| Bed Volume : Suggested Max Load Rate : Dimensions | 0.33µL : 120µL/min : 0.18x13.5mm; 0.68µL : 250µL/min : 0.25x13.5mm; 1.5µL : 500µL/min : 0.36x13.5mm; 2.6µL : 1mL/min : 0.51x13.5mm; 0.17µL : 60µL/min : 0.13x13.5mm |
| Packing Material | 2.7µm HALO®; 3.0µm EXP®; 5.0µm HALO®; 10.0µm; 30.0µm; Custom |
| Phase | C18; C8; C4; Hilic; Rp-Amide; Phenyl-Hexyl; Peptide (Pressure Limit 6000psi); Peptide ES-C18; SAX; SCX; Penta-HILIC; ES-CN; PFP; Custom |
