OPTI-MAX 600 bar AIV check valve cartridge for Agilent HPLC systems.
Optimize Technologies has developed the OPTI-MAX 600 bar Active Inlet replacement cartridge (AIV) that retails for about the same price as the 400 bar active inlet cartridge offered by Agilent.
By choosing the OPTI-MAX 600 bar AIV cartridge, labs with multiple Agilent 400 bar and 600 bar instruments need only purchase and inventory the one OPTI-MAX AIV cartridge, making maintenance and repair that much simpler and less costly.
G1312-60020, 5062-8562
1100, 1120, 1200, 1260 Infinity II SFC, 1260 Infinity
Not compatible with valve body 0491-0131.
| Part Number / SKU | 27-38-04713 |
|---|---|
| Product Type | Active Inlet Valve (AIV) replacement check valve cartridge |
| Application Compatibility | 400 bar and 600 bar applications |
| Pressure Rating | Rated to 20,000 PSI |
| Wetted Materials | 316 SS, PEEK and Zirconia |
| Cartridge Body | 316 SS |
| Ball/Seat Material | Zirconia |
| Leak Test | Individually tested to perform at 3 bubbles or less in the industry-standard 90 PSI nitrogen leak test |
| Assembled Cartridge Pressure | Withstands well over 20,000 PSI |
The OPTI-MAX 600 bar AIV utilizes proprietary OPTI-MAX technology with wetted materials being 316 SS, PEEK and Zirconia for complete compatibility and reliability in both 400 bar and 600 bar applications.
The OPTI-MAX Zirconia ball/seat sets are the best in the industry and are individually tested to perform at 3 bubbles or less in the industry-standard 90 PSI nitrogen leak test and withstand well over 20,000 PSI as the assembled cartridge.
Ball travel is minimized, which allows the OPTI-MAX AIV cartridge to exhibit extremely low pulsation in both 600 bar and 400 bar applications.
The rugged 316 SS cartridge body allows the OPTI-MAX AIV cartridge to be easily inserted and tightened for the higher pressure application of 600 bar, while being completely compatible with both 600 and 400 bar instruments.
No product-specific documents are currently available. Contact us if you need help finding documentation for this product.

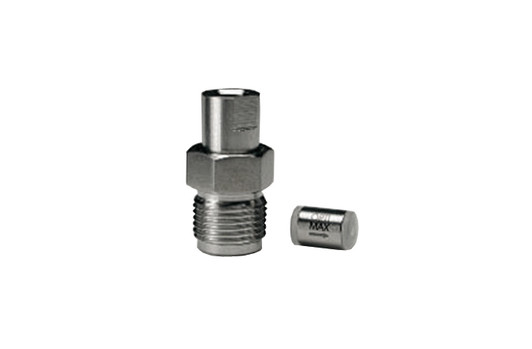

Part #34-57-00885
