OPTI-GUARD® 1mm Guard Columns

View Citations

Add to Cart

Options

$420.00
Part Number:
10-02-00007, 10-02-00010, 10-02-03211, 10-02-00014, 10-02-00018, 10-02-00022, 10-02-00026, 10-02-00030, 10-02-00034, 10-02-04068, 10-02-03463
$420.00

Info

SKU:10-02-00007, 10-02-00010, 10-02-03211, 10-02-00014, 10-02-00018, 10-02-00022, 10-02-00026, 10-02-00030, 10-02-00034, 10-02-04068, 10-02-03463

Info

SKU:
10-02-00007, 10-02-00010, 10-02-03211, 10-02-00014, 10-02-00018, 10-02-00022, 10-02-00026, 10-02-00030, 10-02-00034, 10-02-04068, 10-02-03463

Specifications

Pressure Rating, Product Family,

Specifications

Pressure Rating:
up to 6,000psi - HPLC
Product Family:
OPTI-GUARD

Description

Description

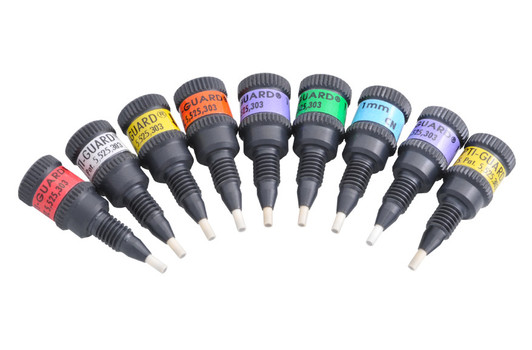

OPTI-GUARD® Guard Columns

For Narrow-Bore Analytical Columns

Our OPTI-GUARD® analytical columns set the standard for extremely low impact, easy to use pre-column protection. Our OPTI-GUARD® 1mm Guard Columns are designed to for use with narrow-bore analytical columns with a 1.0mm internal diameter. Other options are available with alternative IDs (4.6mm, 3.0mm, and 2.1mm IDs).

Our patented floating stem design automatically adjusts to any manufacturer's tube stop depth for a zero-dead-volume connection with every use. The best part? It's no larger than a standard fitting. Connecting with OPTI-GUARD® Guard Columns requires no extra tubing, maintaining the minimal impact philosophy that has made the OPTI-GUARD® line so popular in analytical columns.

*Please note, product label colors may differ from what is pictured

Features

  • Includes 5 disposable hand-tight holders and cartridges
  • ZDV Connection - automatically adjusts to all manufacturer's columns
  • Requires no extra tubing for connection
  • Does not effect chromatography
  • No larger than a standard fitting

Compatibility

Designed to for use with narrow-bore analytical columns with a 1.0mm internal diameter.

Automatically adjusts to any manufacturer's tube stop depth for a zero-dead-volume connection with every use.

ZDV Connection - automatically adjusts to all manufacturer's columns.

Other options are available with alternative IDs (4.6mm, 3.0mm, and 2.1mm IDs).

Technical Specs

SKU 10-02-00007, 10-02-00010, 10-02-03211, 10-02-00014, 10-02-00018, 10-02-00022, 10-02-00026, 10-02-00030, 10-02-00034, 10-02-04068, 10-02-03463
Part Number 10-02-00007, 10-02-00010, 10-02-03211, 10-02-00014, 10-02-00018, 10-02-00022, 10-02-00026, 10-02-00030, 10-02-00034, 10-02-04068, 10-02-03463
Pressure Rating up to 6,000psi - HPLC
Product Family OPTI-GUARD
Phase Options C18, C8, C4, Silica, Phenyl, Cyano/CN, Amino/NH2, Anion Exchange, Cation Exchange, DVB, Custom Packed
