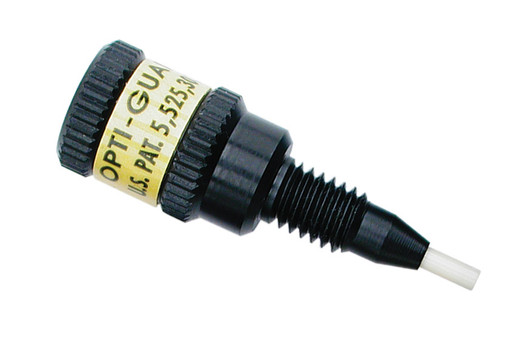

OPTI-GUARD® Biocompatible provides low-impact, easy-to-use pre-column protection for 4.6, 3.0, 2.1, and 1.0 mm i.d. columns. Its patented floating-stem design automatically adjusts to the tube-stop depth of virtually any manufacturer’s column, creating a reliable zero-dead-volume connection.
The compact, all-in-one design is no larger than a standard HPLC fitting and connects directly to the analytical column without additional tubing. Mated holders and cartridges support hand-tight installation and fast cartridge changes, while the 1 × 14 mm configuration operates at pressures up to 6,000 psi (400 bar). Custom packing and biocompatible options are also available.
*Please note, product label colors may differ from what is pictured
Supports 4.6, 3.0, 2.1, and 1.0 mm i.d. analytical columns
Connects directly to the column without additional tubing
Floating-stem design adapts to all manufacturers’ tube-stop depths for a zero-dead-volume connection
Available with custom packing and non-biocompatible options
| SKU | 10-02-03532, 10-02-04708, 10-02-03534, 10-02-03538, 10-02-03536, 10-02-03680, 10-02-03683 |
|---|---|
| Part Number | 10-02-03532, 10-02-04708, 10-02-03534, 10-02-03538, 10-02-03536, 10-02-03680, 10-02-03683 |
| Pressure Rating | up to 6,000psi - HPLC |
| Frit Material | Titanium |
| Internal Diameter | 1.0mm internal diameter |
| Phase Options | C18, C8, Silica, Cyano/CN, Amino/NH2, Anion Exchange, Cation Exchange, Custom Packings |
| Package Includes | 5 disposable hand-tight biocompatible holders and cartridges |
Part #10-02-00007, 10-02-00010, 10-02-03211, 10-02-00014, 10-02-00018, 10-02-00022, 10-02-00026, 10-02-00030, 10-02-00034, 10-02-04068, 10-02-03463
