OPTI-TRAP™ is a bi-directional trap cartridge system for sample concentration and purification. Cartridges can be used individually or in series.
The OPTI-TRAP system is rated hand-tight for use up to 1,500 psi (100 bar) and features low back pressure. Samples may be loaded and eluted manually with a syringe or used on-line when the system is plumbed into the sample injection valve. The bi-directional cartridge design supports flushing and bed regeneration. Transparent cartridge construction allows visual inspection of the packed bed, and color-coded bands identify packing material.
OPTI-TRAP cartridges/inserts are PCTFE with titanium frits for chemical compatibility and full biocompatibility.
Custom packing is available upon request.
OPTI-TRAP uses three cartridge size identities:
| Cartridge size | Bed volume | Dimensions |
|---|---|---|
| Capillary | 0.5 µL | 0.5 × 2 mm |
| Micro | 5 µL | 1 × 8 mm |
| Macro | 50 µL | 3 × 8 mm |
OPTI-TRAP phase identities are:
Choose a phase based on its suitability for your application, not availability alone. For exact chemistry identities and distinctions between related names, use the Trap Chemistry Reference.
Pack-size options are:
Use the product selectors to see the size, phase, and pack-size combinations currently available to order. Choose cartridge bed volume based on your method or application requirements.
Need custom packing or configuration help? Contact Optimize Technologies for assistance with custom packing, cartridge sizing, or a configuration that is not shown in the product selectors.
If you need help deciding whether OPTI-TRAP is the right trapping family, see the OPTI-TRAP family overview or the Trap Columns Hub.
For general trapping principles and terminology, use Trapping Fundamentals / Technical Reference. For chemistry interpretation, use the Trap Chemistry Reference.
The OPTI-TRAP system uses a biocompatible trap-holder assembly made of PEEK for the Capillary configuration and stainless steel with a PEEK flow path for the Micro and Macro configurations.
| OPTI-TRAP cartridge | Holder | Part number |
|---|---|---|
| Capillary — 0.5 µL | Manual Holder Kit — Capillary configuration | 10-02-04749 |
| Capillary — 0.5 µL | Capillary Loop Trap Holder | 10-02-04808 |
| Micro — 5 µL | Manual Holder Kit — Micro configuration | 10-02-04745 |

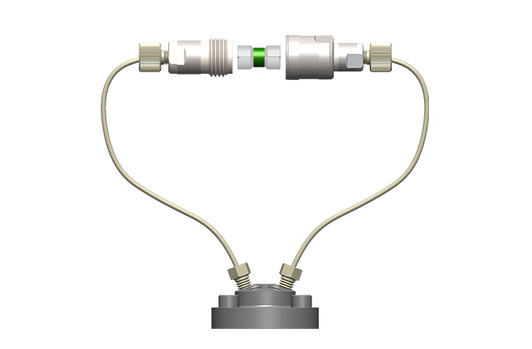

| Micro — 5 µL | Micro/Macro Loop Trap Holder | 10-02-04751 |
| Macro — 50 µL | Manual Holder Kit — Macro configuration | 10-02-04747 |
| Macro — 50 µL | Micro/Macro Loop Trap Holder | 10-02-04751 |
For additional physical-fit information, use the Trap Compatibility & Holder Reference. If you need help with a cartridge-and-holder pairing that is not listed there, contact Optimize Technologies before selecting a holder.
| Specification | Information |
|---|---|
| Product | OPTI-TRAP™ Cartridges |
| System pressure rating | Hand-tight OPTI-TRAP system rated for use up to 1,500 psi (100 bar) |
| Operation | Manual syringe loading/elution or on-line operation when plumbed into the sample injection valve |
| Cartridge flow behavior | Bi-directional, supports flushing and bed regeneration |
| Cartridge/insert construction | PCTFE with titanium frits |
| Capillary | 0.5 µL, 0.5 × 2 mm |
| Micro | 5 µL, 1 × 8 mm |
| Macro | 50 µL, 3 × 8 mm |
| Phase identities | Protein Concentration & Desalting Trap, Peptide Concentration & Desalting Trap, NID (Non-Ionic Detergent) Removal Trap, SCX (Strong Cation Exchange) Trap, Small Molecule SDS Removal Trap, Custom |
| Pack-size options | Single, 6 pack |
| Custom packing | Available upon request |
Part #10-03328-ES, 10-03328-TA, 10-03328-xx..., 10-03324-ES, 10-03324-xx..., 10-03317-ES, 10-03317-TA, 10-03317-xx..., 10-03229-ES, 10-03229-TA, 10-03229-xx..., 10-03233-ES, 10-03233-TA, 10-03233-xx...
